API Body Validation (Edgio)

When I worked with Edgio, I architected, built, and maintained our API Security feature. Below is my overview of it, described solely using public resources, though you may review the current documentation yourself at the following links:

What is API Security?

API Security is a module of the CDN’s firewall which allows customers to configure what sort of requests are allowed, and to which endpoints. Specifically, the customer defined the following:

a valid JSON schema (defined in RFC 8927)
a web API endpoint of theirs
request methods to validate (e.g. GET, POST, PUT, DELETE, etc.)
A set of JSON Web Keys (JWKs, defined in RFC 7517)

JSON Schema example

{
  "$id": "https://example.com/blog-post.schema.json",
  "$schema": "https://json-schema.org/draft/2020-12/schema",
  "description": "A representation of a blog post",
  "type": "object",
  "required": ["title", "content", "author"],
  "properties": {
    "title": {
      "type": "string"
    },
    "content": {
      "type": "string"
    },
    "publishedDate": {
      "type": "string",
      "format": "date-time"
    },
    "author": {
      "$ref": "https://example.com/user-profile.schema.json"
    },
    "tags": {
      "type": "array",
      "items": {
        "type": "string"
      }
    }
  }
}

Valid Request Body

{
  "title": "New Blog Post",
  "content": "This is the content of the blog post...",
  "publishedDate": "2023-08-25T15:00:00Z",
  "author": {
    "username": "authoruser",
    "email": "author@example.com"
  },
  "tags": ["Technology", "Programming"]
}

Customer configuration page for **API Schema** files

API’s inventoried using our **API Discovery** tool

Why?

Companies have many APIs that may not fully be routinely inventoried or updated
APIs are major attack vectors and are more connected to backend infrastructure
The Principle of Least Privilege

The OWASP Foundation suggests three categories for maintaining API Security:

API Security Posture: Creates an inventory of APIs, the methods exposed and classifies the data used by each method.
API Runtime Security: provides protection to APIs during their normal running and handling of API requests.
API Security Testing: Dynamic assessment of an API’s security state.

The API Security feature I built targeted categories (1) and (2) after being combined with our ML-powered API Discovery feature I helped build.

How it functions

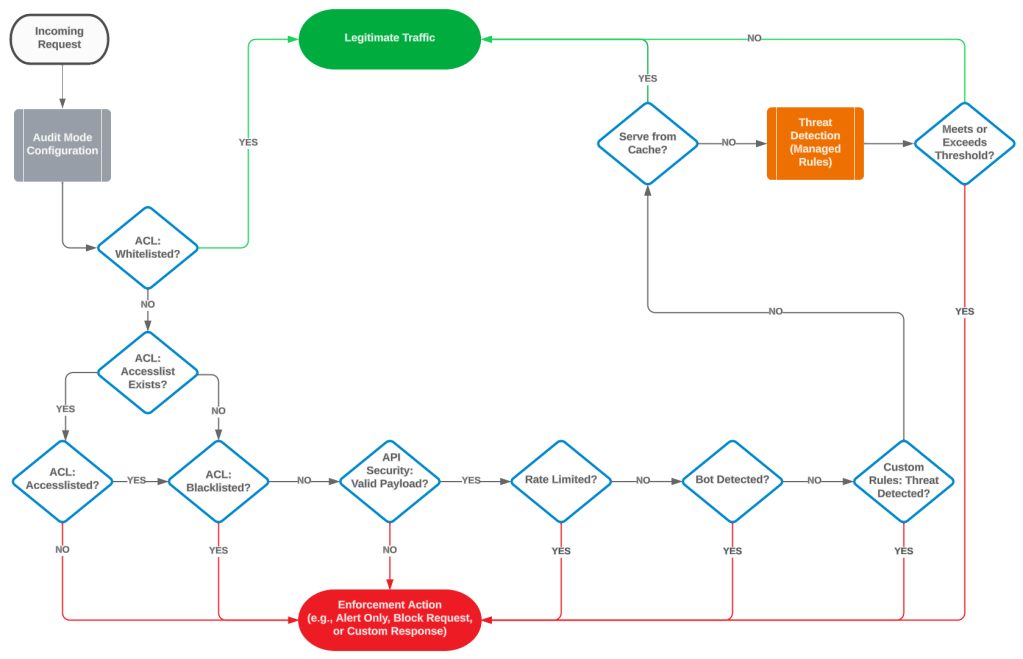

As a mature, partially open-source, firewall operating at a massive scale, the validation process for requests was part of a larger customer-configurable decision-tree. This tree involved Access control lists, rate-limiting, (ML-powered) threat detection, etc. Below is a diagram showing the flow of a request:
